TM Fachbodenregal im Stecksystem, Grundregal

Multifunctional plug-in shelving system for universal use.

The modular plug-in shelving system offers you complete freedom in your warehouse design. Easy plug-in assembly and a wide range of accessories allow for industry-specific customization for storing a variety of goods.

Scope of delivery

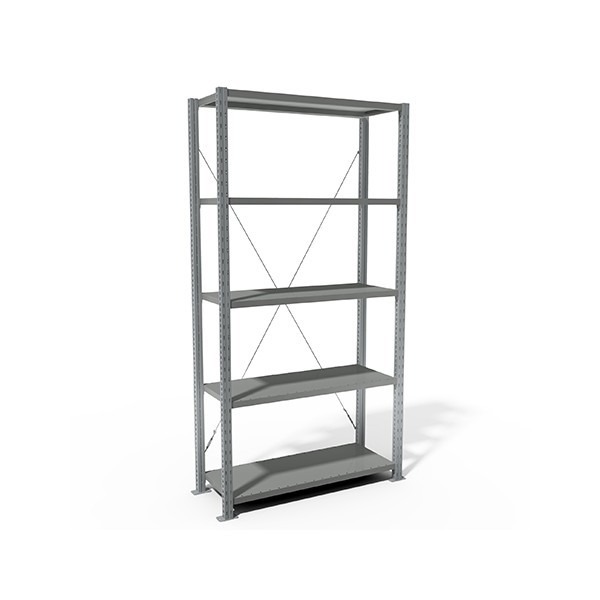

• Basic shelving unit consisting of 2 inserted support frames, base plates, shelves, shelf supports and cross bracing.
• Height 2000 mm: 5 shelves.
• Height 2500 mm: 6 shelves.
• Height 3000 mm: 7 shelves.

Product features

• Simple and quick assembly
• Frame stiffening by shelf supports, shelf stiffening with cross bracing
• Shelf load capacity: 150 to 360 kg
• Field loads 3000 kg
• Steel shelves, 32 mm thick, with system perforations for pluggable accessories, hole spacing 50 mm
• Shelves can be adjusted in height in 25 mm increments.
• Galvanized finish (other colors powder-coated, such as RAL 7035 light grey, available on request)
• Height: 2000, 2250, 2500, 3000, 3500 and 4000 mm
• Width: 750, 1000, 1250 and 1300 mm
• Depth: 300, 400, 500, 600, 800 mm
• GS-certified according to BGR 234 and equipped with the RAL-RG 614 quality mark
